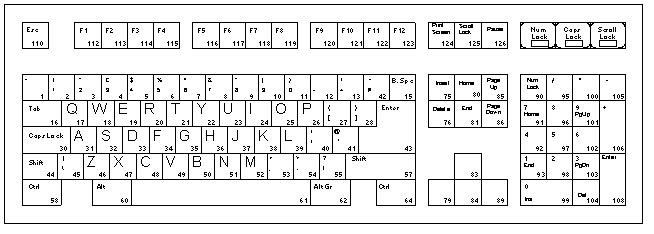

| SPS Home > Dgreath > AT Keyboard Layout |
| Key # | Regular Character |
Shifted Character |
Make Code | Break Code |
|---|---|---|---|---|
| 1 | ` (backwards quote) |
~ | 29 | A9 |
| 2 | 1 | ! | 02 | 82 |
| 3 | 2 | @ | 03 | 83 |
| 4 | 3 | # | 04 | 84 |
| 5 | 4 | $ | 05 | 85 |
| 6 | 5 | % | 06 | 86 |
| 7 | 6 | ^ | 07 | 87 |
| 8 | 7 | & | 08 | 88 |
| 9 | 8 | * | 09 | 89 |
| 10 | 9 | ( | 0A | 8A |
| 11 | 0 | ) | 0B | 8B |
| 12 | - (dash) |
_ (underscore) |
0C | 8C |
| 13 | = | + | 0D | 8D |
| 16 | <Tab> | <Backwards Tab> | 0F | 8F |
| 17 | q | Q | 10 | 90 |
| 18 | w | W | 11 | 91 |
| 19 | e | E | 12 | 92 |
| 20 | r | R | 13 | 93 |
| 21 | t | T | 14 | 94 |
| 22 | y | Y | 15 | 95 |
| 23 | u | U | 16 | 96 |
| 24 | i | I | 17 | 97 |
| 25 | o | O | 18 | 98 |
| 26 | p | P | 19 | 99 |
| 27 | [ | { | 1A | 9A |
| 28 | ] | } | 1B | 9B |
| 29 | \ | | | 2B | AB |
| 30 | <Caps Lock> | 3A | BA | |
| 31 | a | A | 1E | 9E |
| 32 | s | S | 1F | 9F |
| 33 | d | D | 20 | A0 |
| 34 | f | F | 21 | A1 |
| 35 | g | G | 22 | A2 |
| 36 | h | H | 23 | A3 |
| 37 | j | J | 24 | A4 |
| 38 | k | K | 25 | A5 |
| 39 | l | L | 26 | A6 |
| 40 | ; | : | 27 | A7 |
| 41 |
? (regular quote) |
" (double quote) |
28 | A8 |
| 42 | # | ~ | 2B | AB |
| 43 | <Enter> | 1C | 9C | |
| 44 | <Left Shift> | 2A | AA | |
| 45 | \ | | | 56 | D6 |
| 46 | z | Z | 2C | AC |
| 47 | x | X | 2D | AD |
| 48 | c | C | 2E | AE |
| 49 | v | V | 2F | AF |
| 50 | b | B | 30 | B0 |
| 51 | n | N | 31 | B1 |
| 52 | m | M | 32 | B2 |
| 53 |
, (comma) |
< | 33 | B3 |
| 54 |
. (period) |
> | 34 | B4 |
| 55 | / | ? | 35 | B5 |
| 57 | <Right Shift> | 36 | B6 | |
| 58 | <Left Ctrl> | 1D | 9D | |
| 59 | <Left Alt> | 38 | B8 | |
| 61 | <Space Bar> | 39 | B9 | |
| 62 | <Right Alt> | E0 38 | E0 B8 | |
| 64 | <Right Ctrl> | E0 1D | E0 9D | |
| 75 | <Insert> | E0 52 | E0 D2 | |
| 76 | <Delete> | EO 53 | EO D3 | |
| 79 | <Left Arrow> | E0 4B | E0 CB | |
| 80 | <Home> | E0 47 | E0 97 | |
| 81 | <End> | E0 4F | E0 CF | |
| 83 | <Up Arrow> | E0 48 | E0 C8 | |
| 84 | <Down Arrow> | E0 50 | E0 D0 | |
| 85 | <Page Up> | E0 49 | E0 69 | |
| 86 | <Page Down> | E0 51 | E0 D1 | |
| 89 | <Right Arrow> | E0 4D | E0 CD | |
| 90 | <Num Lock> | 45 | C5 | |
| 91 | <Home> | 7 | 47 | C7 |
| 92 | <Left Arrow> | 4 | 4B | CB |
| 93 | <End> | 1 | 4F | 8F |
| 95 | / | E0 35 | E0 B5 | |
| 96 | <Up Arrow> | 8 | 48 | C8 |
| 97 | (none) | 5 | 4C | CC |
| 98 | <Down Arrow> | 2 | 50 | D0 |
| 99 | <Ins> | 0 | 52 | D2 |
| 100 | * | 37 | B7 | |
| 101 | <PgUp> | 9 | 49 | C9 |
| 102 | <Right Arrow> | 6 | 4D | CD |
| 103 | <PgDn> | 3 | 51 | D1 |
| 104 | <Del> | . (period) | 53 | D3 |
| 105 | - | 4A | CA | |
| 106 | + | 4E | CE | |
| 108 | <Enter> | E0 1C | E0 9C | |
| 110 | <Esc> | 01 | 81 | |
| 112 | <F1> | 3B | BB | |
| 113 | <F2> | 3C | BC | |
| 114 | <F3> | 3D | BD | |
| 115 | <F4> | 3E | BE | |
| 116 | <F5> | 3F | BF | |
| 117 | <F6> | 40 | C0 | |
| 118 | <F7> | 41 | C1 | |
| 119 | <F8> | 42 | C2 | |
| 120 | <F9> | 43 | C3 | |
| 121 | <F10> | 44 | C4 | |
| 122 | <F11> | 57 | D7 | |
| 123 | <F12> | 58 | D8 | |
| 124 | <Print Screen> | <System Request> | E0 2A E0 37 | E0 B7 E0 AA |
| 125 | <Scroll Lock> | 46 | C6 | |
| 126 | <Pause> | <Break> | E1 1D 45 E1 9D C5 | (none) |
| -- | <Left Windows> | E0 5B | E0 DB | |
| -- | <Right Windows> | E0 5C | E0 DC | |
| -- | <ContextMenu> | E0 5D | E0 DD | |
|
|
||||
